Wire Straightener Roll – Mechanical Counter

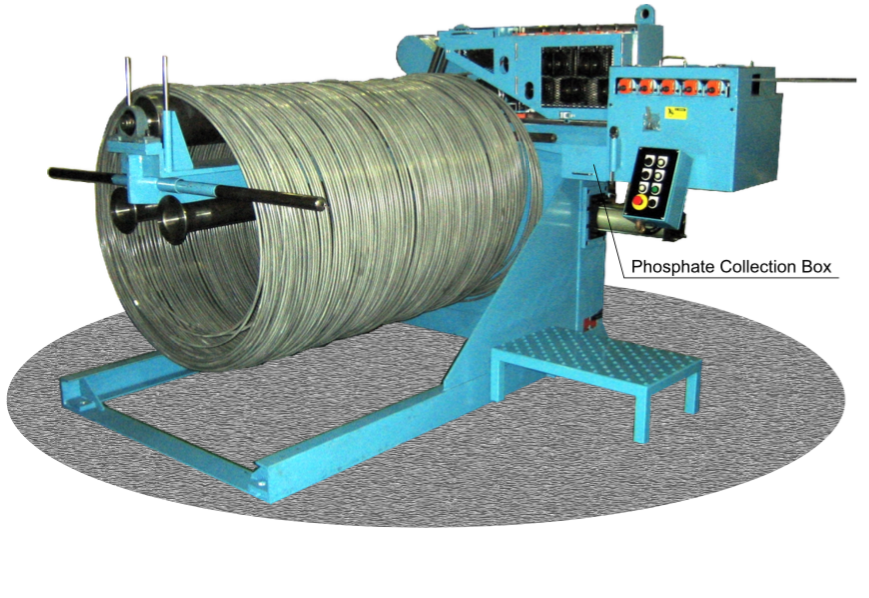

・The coil material is formed into a straight line and supplied to the former. When the material or the diameter of the material changes, adjustments need to be made. By providing a mechanical counter for positioning the wire straightener roll and based on the value of the counter when the material’s diameter is changed, accurate reproduction can occur. Conventionally, the positioning is reproduced by using a scale and indicator, but by changing to digital, this can be done much quicker.
・For each part number, changeover time is shortened by recording the value of each counter.
・A box is located on the floor to collect phosphate powder while the wire material is being straightened. This allows for a cleaner, more comfortable work environment.
