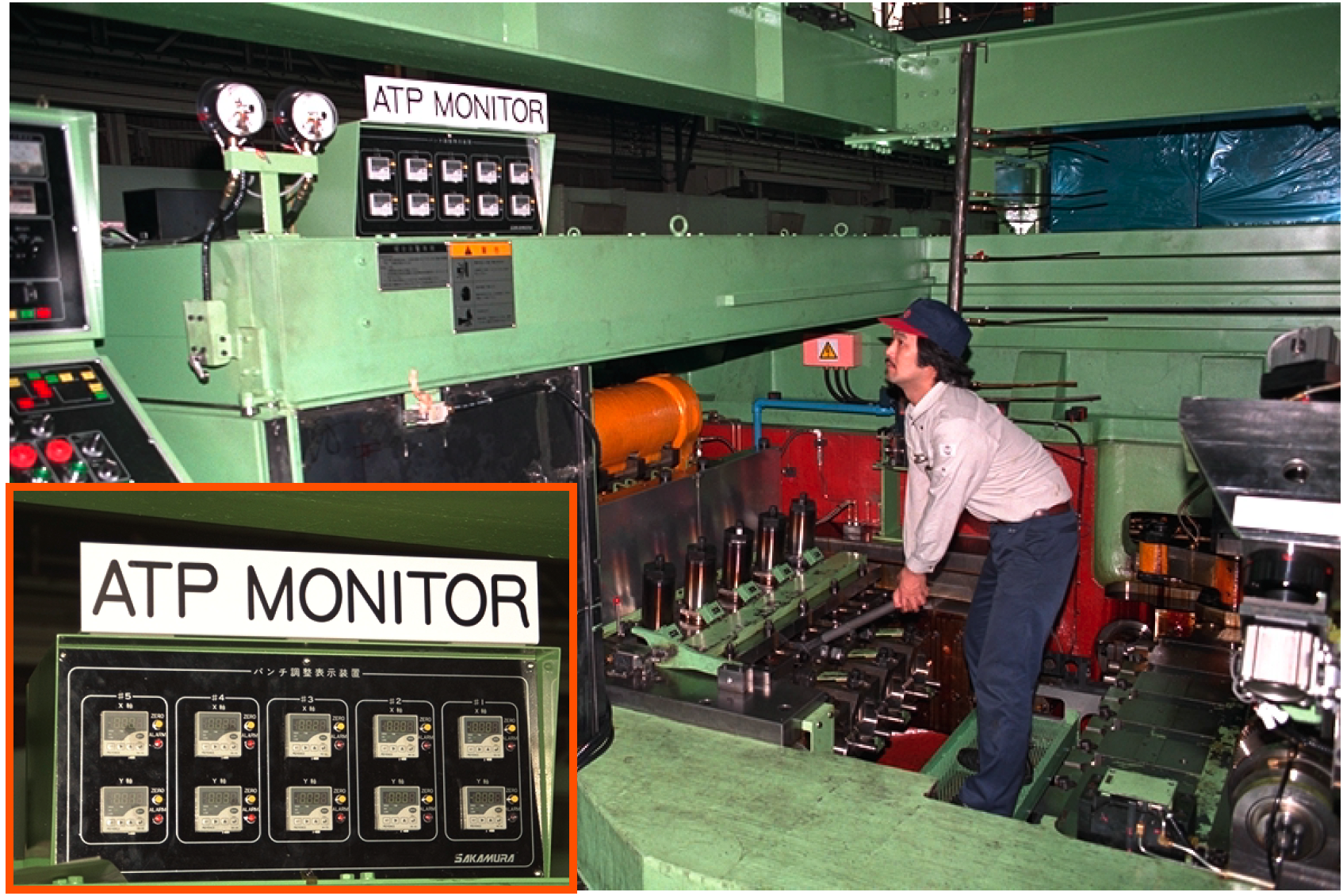

Punch Position Adjustment Monitor

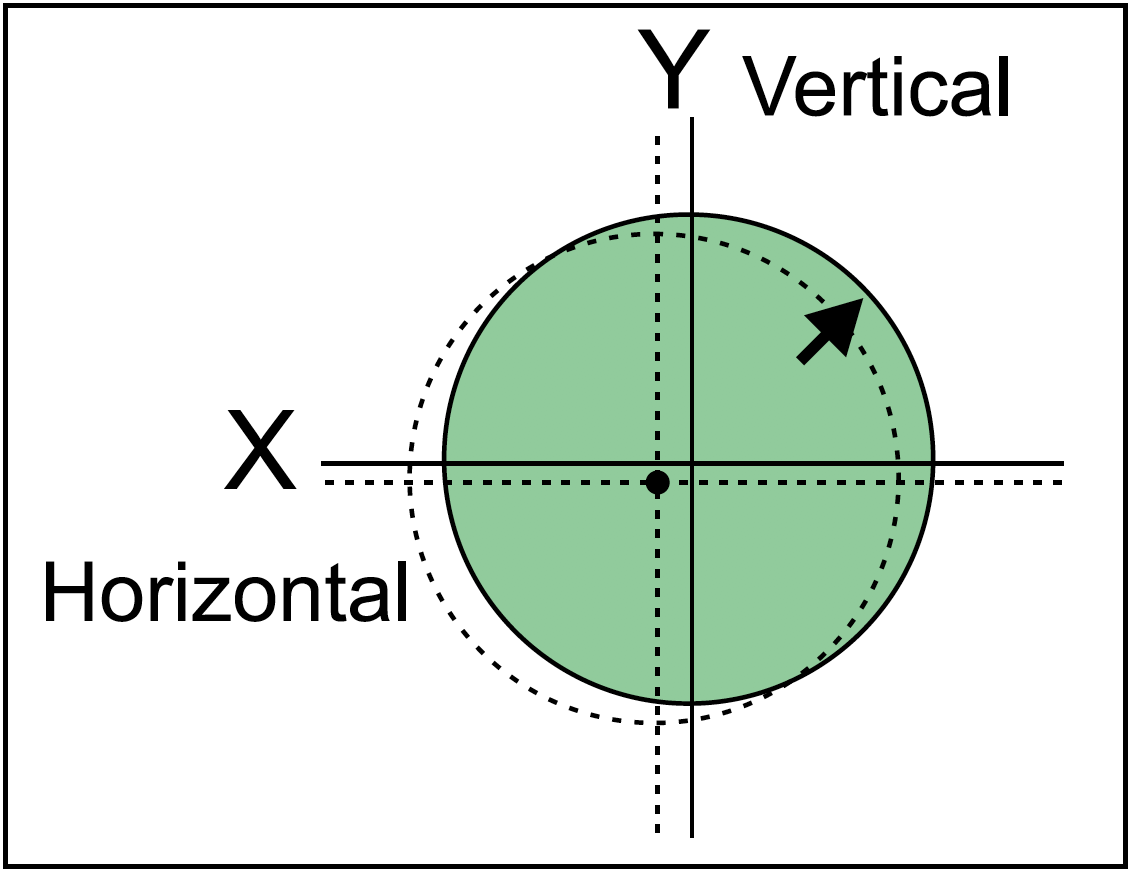

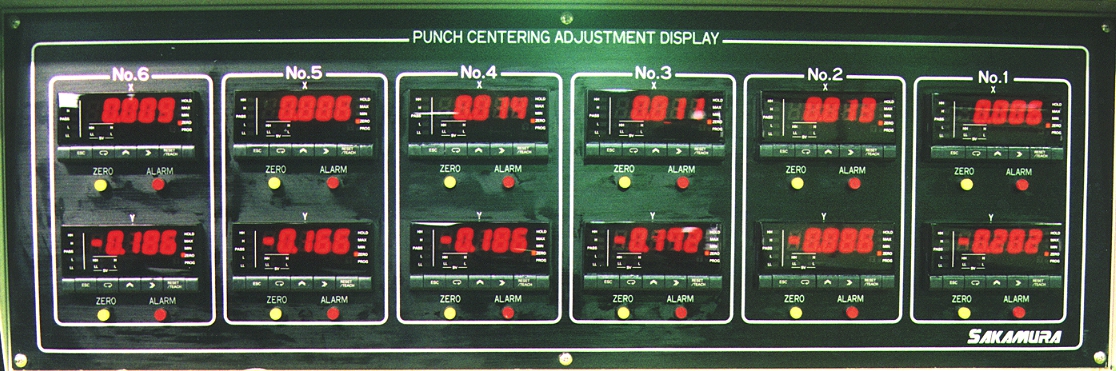

・The punch position’s digital display system (ATP monitor)is a system that displays the position of the punch’s X direction(horizontal)and Y direction(vertical)digitally to a unit of 0.01mm.(PAT.H4-60339)
・Since digital values can be standardized, rather than relying on the operator’s intuition, the punch position can be adjusted quickly as well as accurately.
For example, when a slanted cut of the blank occurs because of a chuck miss at the #2 station, with the XY digital display it can quickly be seen whether the punch is misaligned because of this or not.
